Description

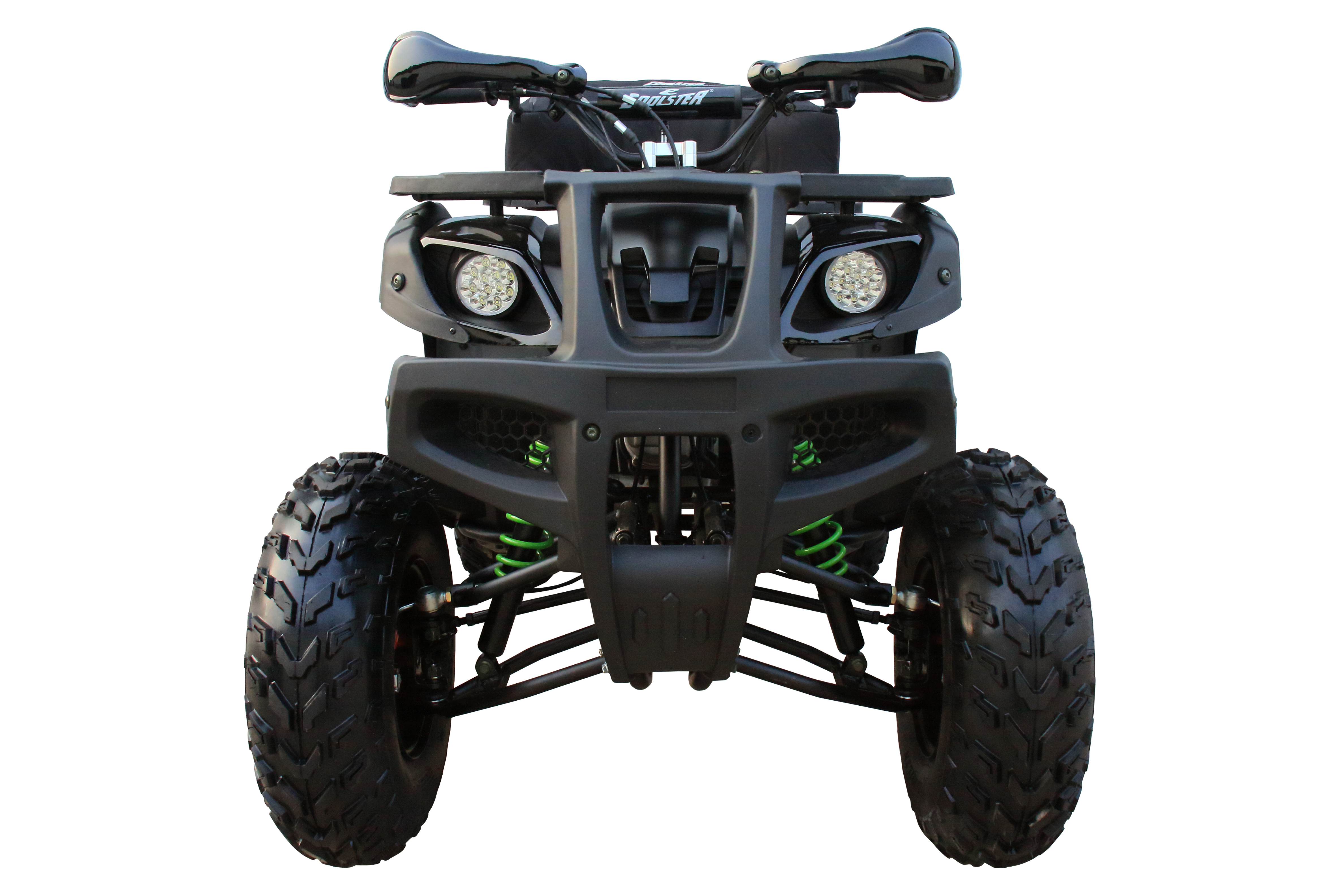

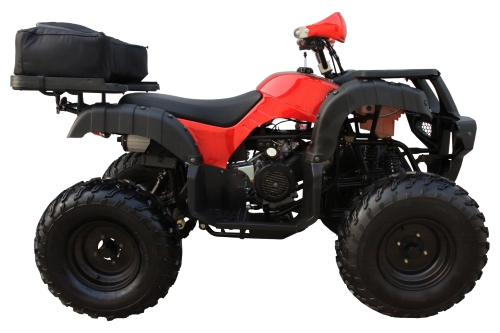

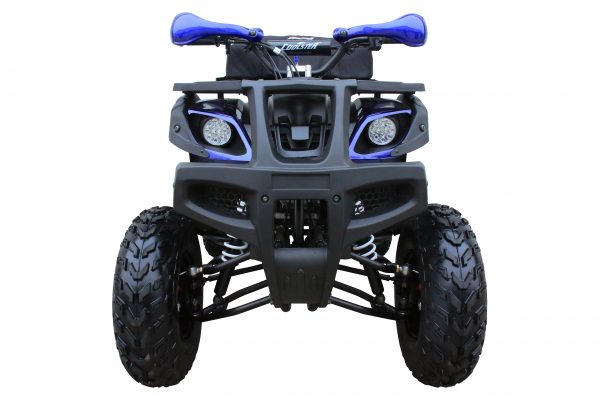

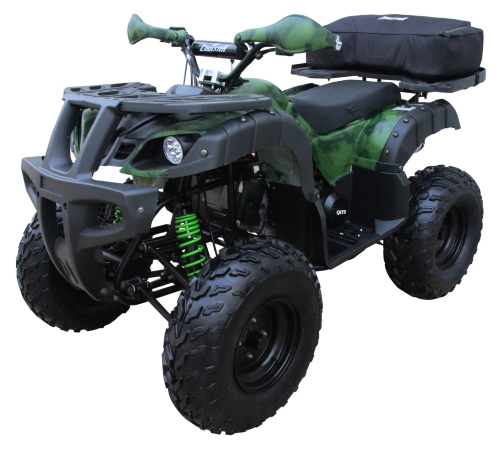

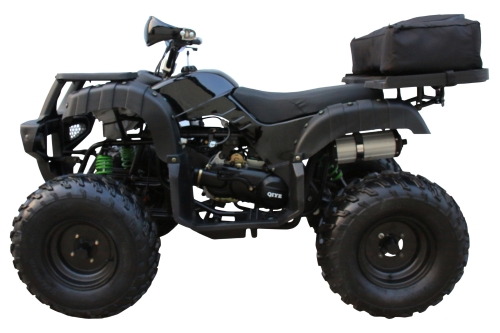

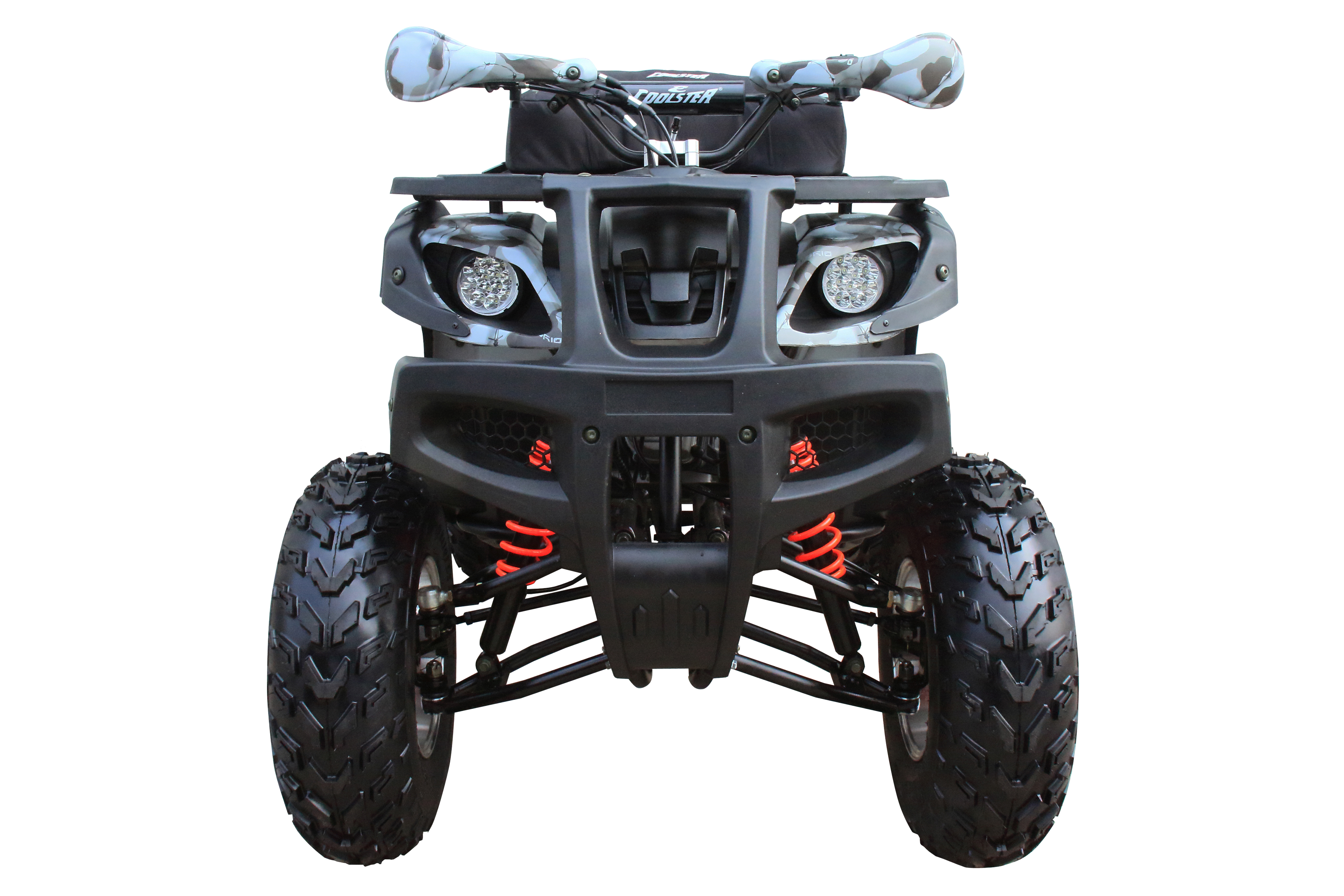

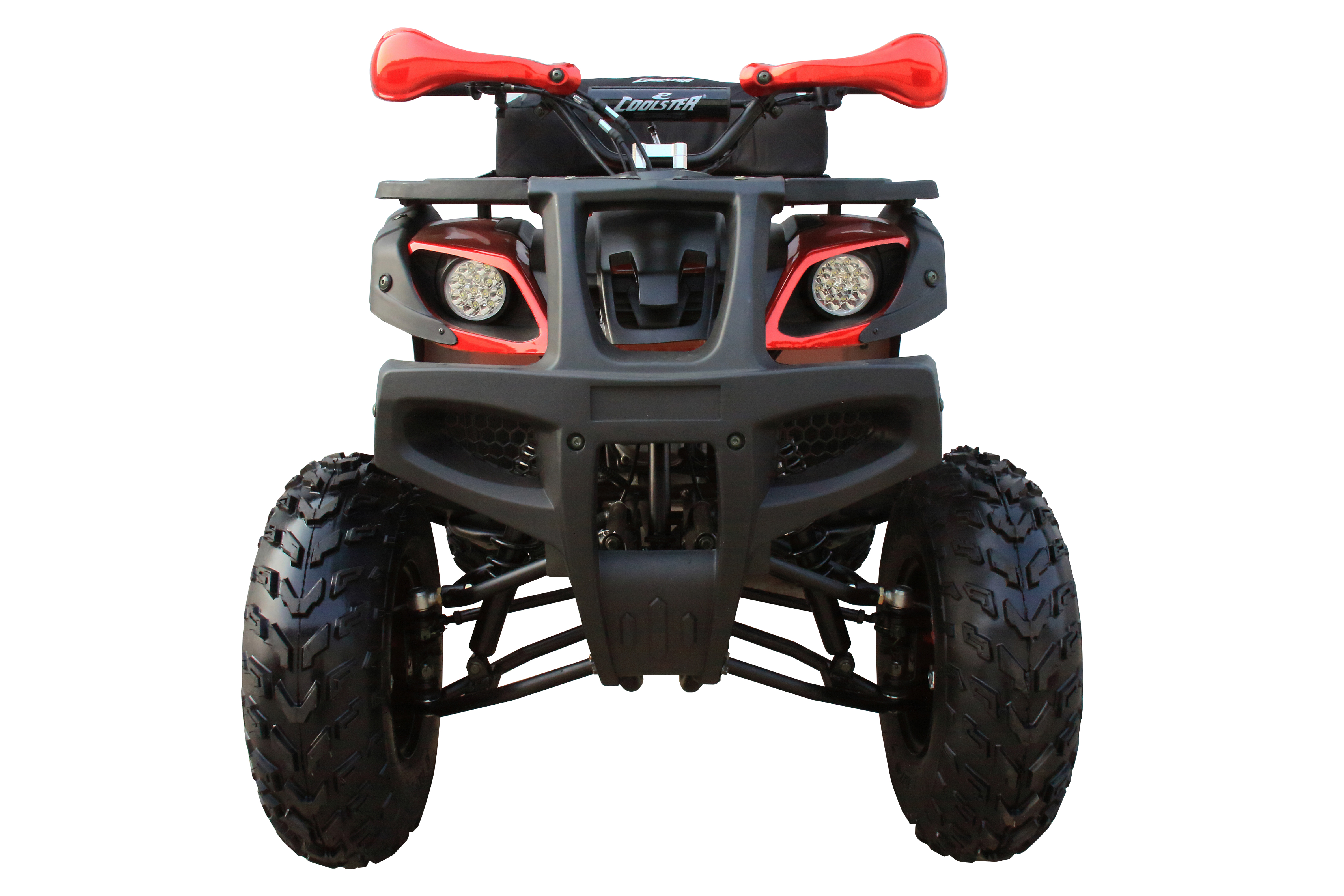

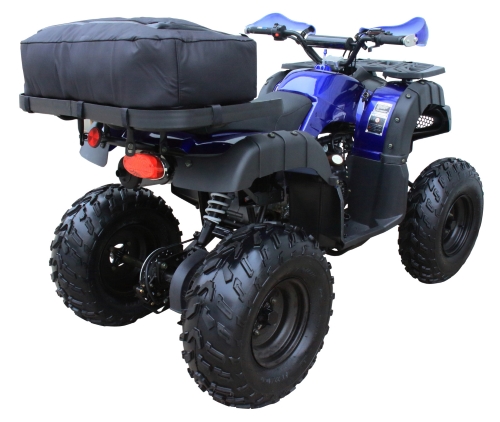

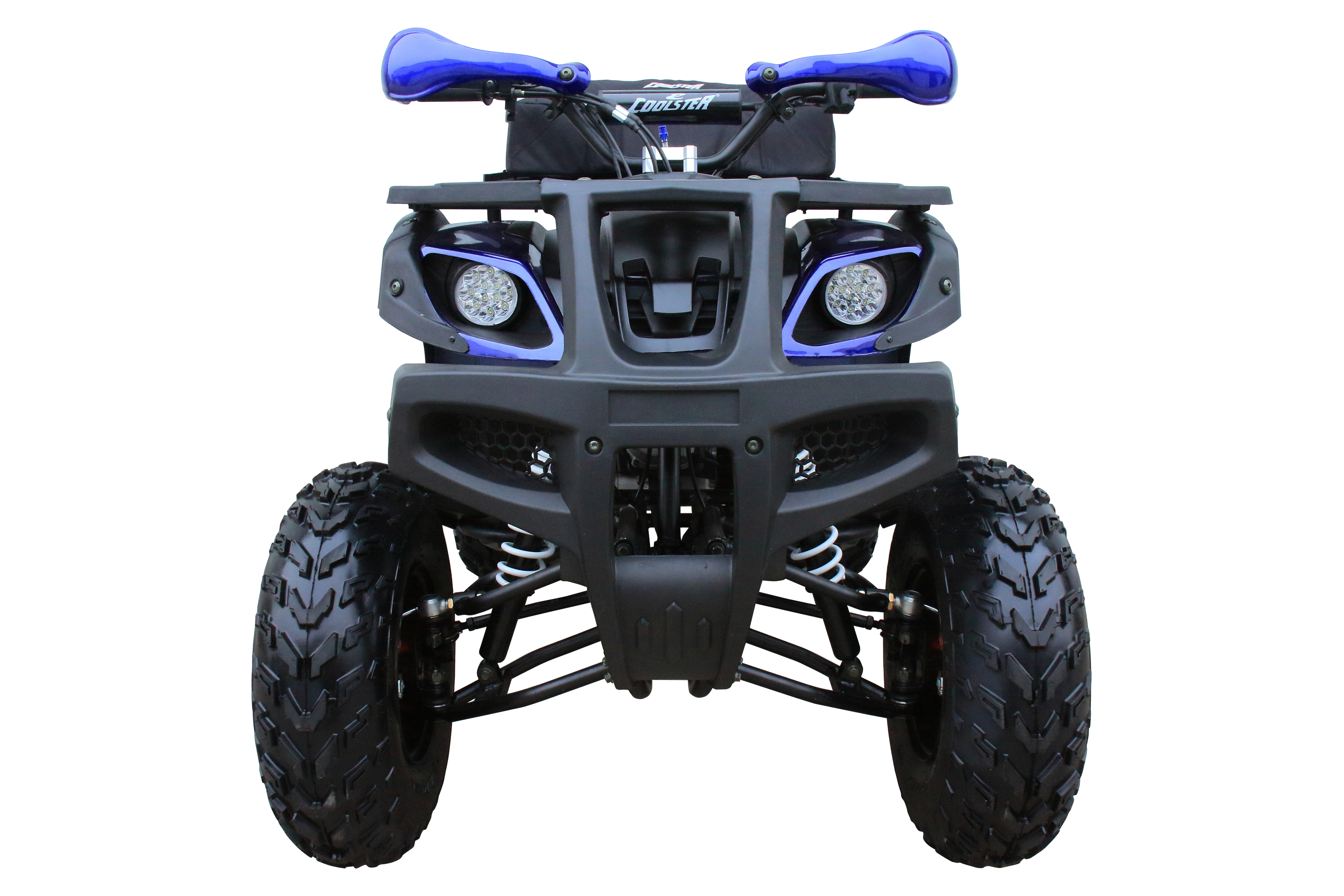

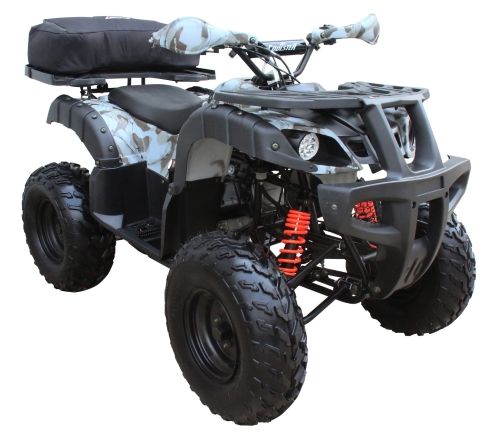

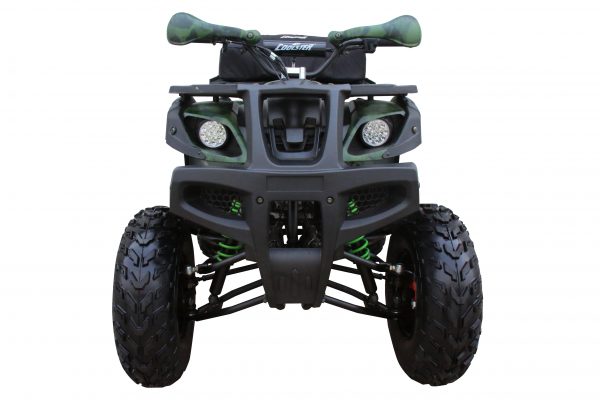

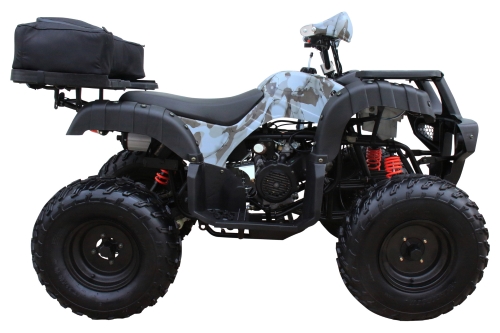

The 150D Utility ATV comes with big 23 inch and 22 inch tires with a powerful air-cooled, 4-stroke, 150cc engine. Features include electric start, dual front drum brakes, rear hydraulic disc brakes, chain drive, a smooth CVT automatic transmission with reverse. The 150D four-wheeler is perfect for great off-road fun. Every option was chosen to maximize performance on the track or in the woods.
Choose from several colors.
Specifications
- Engine type: 150cc 4-stroke, air-cooled, single cylinder
- Transmission: Automatic
- Clutch: CVT
- Bore*stroke: 57.4 x 57.8mm
- compression ratio 9.5 : 1
- Max power: 6.0 / 8000 (Kw/r/min)
- Max torque: 7.8 / 6500 (N.m/r/min)
- Engine oil capacity: 900 ml
- Lubrication system: pressure spatter
- Starting system: electric / foot
- Ignition: CDI
- Carburetor: PD24
- Spark plug: D7TC
- Spark plug space: 0.6-0.7
- Fuel capacity: 2.06 gal. with 0.16 gal. standby
- Max speed: 36 mph
- Shocks Front/Rear: Hydraulic spring / Hydraulic spring
- Tire Front: 23 x 7-10 8psi
- Tire Rear: 22 x 10-10 8psi
- Brake Front: Hub brake / hand operated
- Brake Rear: Hydraulic disc / foot operated
- Generator: Non-contact outside the rotor flywheel
- Front light: 12V35 / 35W
- Battery: 12V 9AH
- Rear light: 12V21 / 5W
- Dimensions (inches): 73.62L x 39.76W x 41.73H
- Wheelbase: 47.83 inches
- Ground clearance: 6.5 inches
- Front gradient: 26 degrees
- Minimum turning radius: 3600 +/- 500 mm
- Steering angle: left right 40 degrees +/- 4 degrees
- Gross weight: 425.5 lbs.
- Net weight: 375 lbs.
- Wheelbase front: 32.28 inches
- Wheelbase rear: 27.95 inches
- Seat height: 29.92 inches
